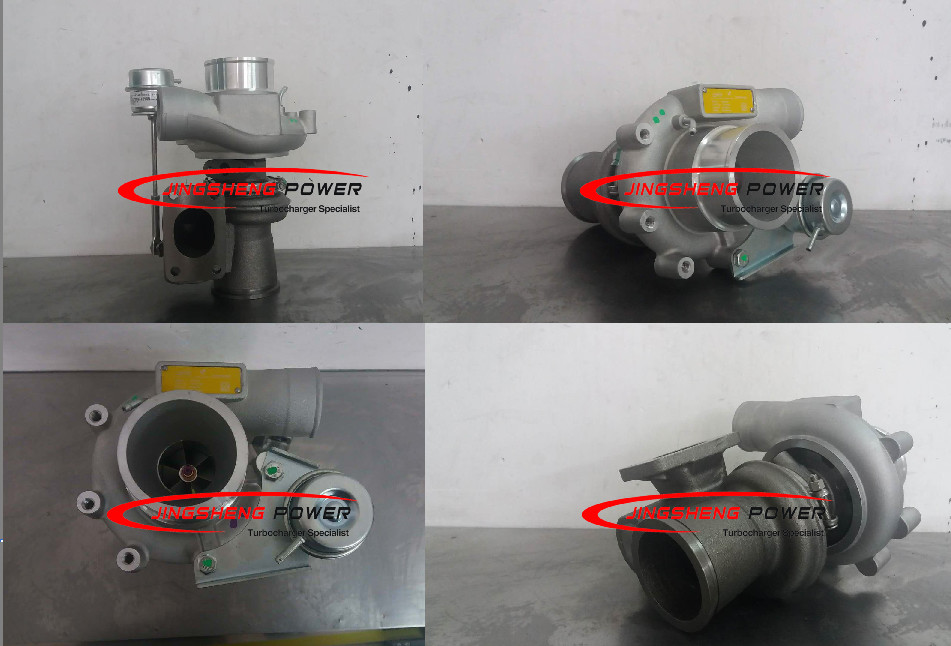

| Part Number | 4038790 |
| Previous versions | 3599355, 3599356, 4038791 |
| OE number | 4089714 |
| Year | 2004- |
| Description | Various 160 Excavator |
| Manufacturer Part Number | 4038791 |
| CHRA | 3539071 |
| Turbo Model | HX25W-TD04HL-11T-6, HX25W |
| Engine | PC100/200/128US |
| Engine Manufacturer | Cummins, Komatsu |
| Angle α (compressor housing) | 155/285º |
| Angle β (turbine housing) | 10/165º |
| Bearing Housing | 1153025450 |
| Turbine Wheel | 1153025435 |
| Comp. Wheel | 1153025400 Super back |
| Back plate | 1153025300 (S/Back) |
| Heat shield Number | 11530253408 |
| Repair Kit | 1153025751 |
| Actuator | 4030795/3599951 |
| Settings waste gate (pressure) | 0.5-1.04/0.3-1.27 bar |
| Settings Waste gate (lift shaft) | 1.75 mm |
| Gasket (turbine inlet) | 210218 (Stainless Steel) |
| Gasket turbine outlet | 210889 (Stainless Steel) |
| Gasket oil outlet | 210243 (Gasket paper) |
Applications
2004- Komatsu Various (160 Excavator) with PC100/200/128US Engine
Why choose us :
1> We are professional turbo and turbo parts factory. The good quality and the competitive price is the advantage of our company.
2> The material we choose is always equal to the OEM standard and products meet to OEM quality system processes
3> A trial order or sample orders are welcomed.
4> More than 800 kinds of turbo products are exported to Europe, America, Japan, and other countries and regions in the world.
5> We will do our best to service you all the time if you have the further question
Shipping:
Depending on various circumstances, three different delivery methods have been taken: by sea, by air cargo and by express service.
*By sea. This is the most economical way of delivery. Suit for big quantity order, the delivery cost dramatically low and assist you in achieving maximum profit. It normally would take about one month for cargoes to reach their destination port.
*By air cargo. The advantage of air cargo is it costs much less time than delivery by sea. Generally it would take about one to two weeks for cargo reaching its destination.
*By express service. It is the most expensive way of delivery, but it is really quick and convenient. Normally this door to door service can deliver the goods to your company only in 3-5days. Fortunately, we have signed big discount contract with most express companies, such as TNT, DHL and UPS, to help our customers cut their delivery expenditure.
----------------------------------------------------
Packing:
- We can design the packing by your requirements but with bigger quantity.
- If need wooden pallets, the customer needs to pay for the wooden pallet charges
- If no requirements, we offer the Corrugated Carton and vellum paper
- The price we offer is the factory price.
- We can help you to delivery the goods while you have requirement.
- And the shipment fee shall be in your account.
- We can only release the goods after the payment of the products was made
----------------------------------------------------
Warranty:
Once buying our products you could enjoy 6 months warranty period. Within this period you could claim quality warranty anytime when you find quality problem of our products.
Please contact our After-sales service department in time within 30days after you received the cargo.
we have complete after-sale services operated by the service department. We can provide you with replacement as well as spare parts. Our technical capability and fast response can make you save money and cost.
